PDF Instruction Manual & Instructional Video
View and download the Instruction Manual for the Sunset NEB100 Nebulizer below. If you do not initially see the PDF file, please try refreshing the page. Scroll further to view the instructional video.
Product Description

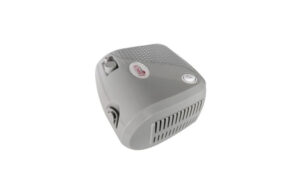

The Sunset NEB100 Nebulizer Compressor is a tabletop nebulizer designed to turn liquid medication into a fine mist that can be inhaled into the lungs. It is used at home to help deliver respiratory medications more directly to the airways and comes with a nebulizer kit and filters. Sunset lists the NEB100 as a compressor nebulizer with fast treatment times, a 6 mL medication capacity, and standard included accessories such as a disposable nebulizer kit and foam filters.
Conditions Commonly Treated
Nebulizers like the Sunset NEB100 are commonly used when a child needs inhaled medication delivered through a mist rather than an inhaler alone. The most common pediatric respiratory conditions and care needs would be:
| Condition / Care Need | How a Nebulizer Helps |
|---|---|
| Asthma | Helps deliver prescribed breathing treatments directly into the lungs during routine care or flare-ups. |
| Reactive airway disease | Supports children who need inhaled medication to help open the airways and support easier breathing. |
| Chronic lung disease | Helps deliver respiratory medication as part of ongoing breathing support at home. |
| Cystic fibrosis | May be used to deliver inhaled medications that support airway care as part of a broader respiratory routine. |
| Upper or lower airway congestion | Helps deliver prescribed medication in a form that may be easier for some children to tolerate. |
Basic Specifications
Here are the most useful basic specs for website copy:
| Category | Specification |
|---|---|
| Equipment Type | Compressor nebulizer |
| Medication Capacity | 6 mL |
| Weight | 2.75 lbs |
| Power | 120V / 60Hz |
| Current | 1.5A |
| Particle Size | 0.5 to 5 μm respirable fraction |
| Average Nebulization Rate | 0.3 to 0.4 mL/min |
| Liter Flow Range | 8 to 10 LPM |
| Noise Level | Below 60 dBA |
Wave Healthcare utilizes a number of different Nebulizer units to meet the needs of our patients. Though only one unit is used in this video demonstration, the same general steps and guidelines can also be applied to other Nebulizer units.
